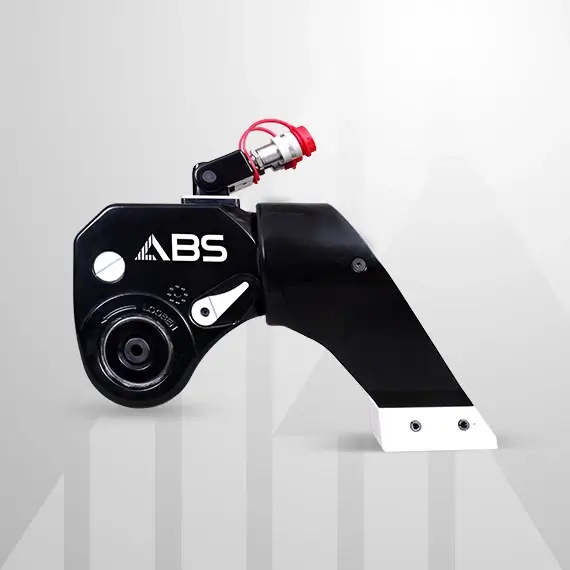

Square Drive Hydraulic Torque Wrench image

Square Drive Hydraulic Torque Wrench

Introducing the CNX series, a square drive hydraulic torque wrench designed for optimal performance and efficiency. This innovative tool incorporates a release lever mechanism, providing a swift and effortless release after completing the torquing process.

Say goodbye to strenuous efforts during tool removal as the CNX series streamlines the operation, enhancing overall user experience.

Key Features:

  • Quick Release Lever
  • Secondary Pawl for Enhanced Tightening
  • High Strength Aerospace Aluminium Material
  • One-Way Ratcheting Mechanism
  • Ratchet Freeing Mechanism
  • Multi-Axis 360°-180° Swivel




MODEL L1
(inch/
mm)
L2
(inch/
mm)
L3
(inch/
mm)
H1
(inch/
mm)
H2
(inch/
mm)
H3
(inch/
mm)
H4
(inch/
mm)
R1
(inch/
mm)
R2
(inch/
mm)
DRIVE
SIZE
WEIGHT
(lbs/
kg)
TORQUE
(ft.lbs./Nm)
                        MIN. MAX.
CNX-02

4.9

124

7.3

186.5

1.1'

28.8

2.0

51.6

2.9

72.6

3.7

93.3

4.9

124.4

1.0

25

4.1

104.3

3/4”

4.41

2

200

271

1339

1816

CNX-04

6.4

161.9

9.7

245.5

1.5

39.1

2.7

68.8

3.7

94.4

4.8

121.2

6.4

162.1

1.3

33.3

5.3

135.2

1”

10.36

4.7

479

650

3228

4377

CNX-07

7.7

195.8

11.7

296.1

1.9

48.5

3.3

82.6

5.0

126.9

5.7

143.7

7.3

185.1

1.6

39.9

6.4

161.6

1 1/2”

18.08

8.2

834

1131

5587

7575

CNX-11

7.7

195.6

12.6

319.3

3.6”

90.7

5.1

129.3

6.5

165.1

8.5

215.9

1.7

44.7

6.9

176.8

1 1/2”

24.91

11.3

1200

1627

8000

10846

CNX-15

9.6

243

14.4

366.2

2.3

57.2

4.1

103.3

5.7

145.7

7.2

183.2

9.1

231.4

2.0

49.8

8.0

203.5

1 1/2”

33.07

15

1754

2378

11513

15610

CNX-30

11.4

289.8

17.3

438.7

2.7

68.8

4.7

120.1

7.1

180.3

8.8

223

10.2

260.1

2.4

59.9

9.6

243.3

2 1/2”

43.43

19.7

2958

4011

19748

26775

CNX-35

11.8

299.7

18.5

470.4

5.2

133.3

7.5

190

9.6

243.8

11.5

292.1

2.6

66.0

10.2

260.3

2 1/2”

68.56

31.1

3883

5265

25890

35102

CNX-50

14.0

356.3

21.2

539.2

3.3

84.6

5.8

147.8

8.3

211.3

10.8

274.1

12.4

313.9

2.9

73.7

11.7

298.2

2 1/2”

77.60

35.2

5397

7317

37078

50271

CNX-72

15.5

393.7

23

584

3.7

94

6.6

166.9

9.4

237.7

11.0

279.4

12.8

325.1

3.3

82.6

12.8

325.6

2 1/2”

124.34

56.4

7875

10677

52500

71180



CNX Series Hydraulic Torque Wrenches: Power, Efficiency, and Durability


The CNX series takes hydraulic torque wrenches to the next level, offering exceptional features that streamline your workflow and ensure accurate, efficient bolting:

Effortless Socket Removal

Quick Release Lever: Forget time-consuming socket changes. The CNX series boasts a one-handed quick release lever. Simply complete your torque and disengage the socket with a flick of the lever, minimizing downtime and maximizing efficiency.

Unmatched Tightening Performance:

Secondary Pawl for Secure and Speedy Tightening: Experience faster, more controlled tightening with the CNX series' secondary pawl. This innovative feature prevents the ratchet from reversing, allowing for uninterrupted torque application and enhanced accuracy during the entire process.

Built to Withstand the Toughest Jobs:

High-Strength Aluminum & Heat Treatment: Durability is at the core of the CNX series. Constructed from high-strength aluminum and undergoing rigorous controlled vacuum heat treatment, these wrenches boast robust drive components that can handle even the most demanding bolting tasks.

Unmatched Versatility:

Advanced Seal Design for Static & Dynamic Applications: The CNX series isn't limited by application type. Thanks to its improved high-pressure seal design, it tackles both static and dynamic applications with ease. This versatility makes it a reliable tool for a wider range of bolting scenarios.

Elevate Your Bolting Experience:

Invest in Efficiency and Precision: Upgrade your bolting operations with the CNX series hydraulic torque wrench. Its combination of advanced features, exceptional durability, and effortless operation creates a seamless and efficient user experience.

Experience the Difference: Whether you're working with static or dynamic applications, the CNX series empowers you to achieve greater precision and control with every torque.
Upgrade to the CNX series today and experience the future of bolting!

For technical issues and after-sales support, please contact us at marketing@aogsgulf.com or call +971-54-465-6191.
