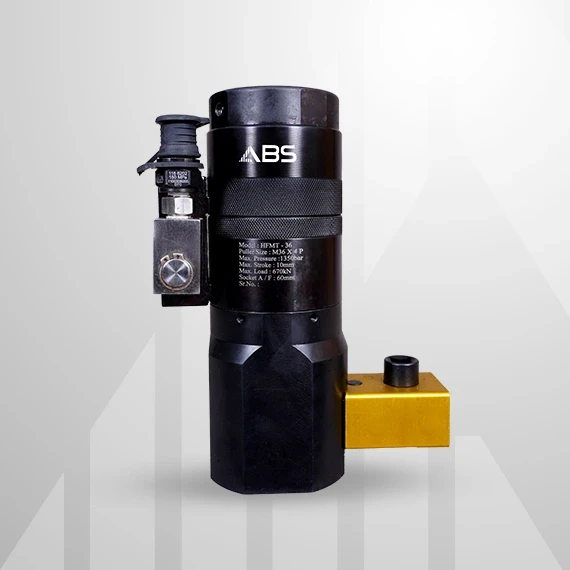

Multi-Stage Tensioner image

HexForce Multi-Stage Tensioner

The HexForce multi-stage bolt tensioners epitomize adaptability and dependability, positioning them as premier hydraulic bolt tensioners for rigorous applications, particularly in environments with high loads and confined spaces. Engineered for diverse applications, these hydraulic bolt tensioners are meticulously crafted to endure extended use while requiring minimal maintenance.

SPECIFICATIONS


Maximum Tensioner Load (kN) / (lbf)                      2244 / 494,560
Minimum Tensioner Load (kN) / (TONF)                  288 / 64,742
Bolt Dia (inch) / (metric)                                           1" - 2 1/2" / M24 - M64
Tool Height (mm)                                                       185 - 376


PRODUCT CATALOGUE


 ABS Multi-Stage Tensioner


MODEL BOLT DIA MAX. LOAD TENSIONER DIA TENSIONER HEIGHT TENSIONER STROKE
  inch mm kN  lbf inch mm inch mm inch mm
HFMT-24 1” M24 288 64,742 2.36 60 7.4 185 0.28 7
HFMT-27 1-1/8" M27 375 84,300 2.6 66 7.62 193.5 0.28 7
HFMT-30 1-1/8" M30 462 1,03,858 2.83 72 7.91 201 0.28 7
HFMT-33 1-1/4" M33 572 1,28,586 3.07 78 8.5 216 0.31 8
HFMT-36 1-3/8" M36 670 1,50,616 3.25 82.5 9.04 229.5 0.39 10
HFMT-39 1-1/2" M39 802 1,80,290 3.62 92 10.31 263 0.39 10
HFMT-42 1-5/8" M42 920.5 2,06,928 3.86 98 10.31 262 0.39 10
HFMT-45 1-3/4" M45 1082 2,43,234 4.13 105 10.91 281.5 0.39 10
HFMT-48 1-7/8" M48 1222 2,74,706 4.37 111 11.56 293.5 0.39 10
HFMT-52 2" M52 1452 3,26,410 4.72 120 12.8 327 0.39 10
HFMT-56 2-1/4" M56 1675 3,76,540 5.04 128 12.99 330 0.39 10
HFMT-64 2-1/2” M64 2244 4,94,560 5.83 146 14.23 376 0.47 12

Master Demanding Bolting Challenges with HexForce Multi-Stage Tensioners

Empowering Performance, Flexibility, and Efficiency:

HexForce multi-stage bolt tensioners redefine the boundaries of hydraulic bolt tensioning. These groundbreaking tools are meticulously engineered to excel in the most demanding environments, offering:

Unparalleled Adaptability

Tailored for High-Load & Confined Spaces: Overcome intricate bolting scenarios effortlessly. HexForce multi-stage tensioners are tailor-made for high-load applications and confined spaces. Their compact design ensures enhanced maneuverability in restricted areas, while delivering the required force for challenging tasks.

Engineered for Endurance, Crafted for Precision:

Minimal Maintenance Demands: Shift your focus to maximizing productivity rather than adhering to maintenance schedules. HexForce multi-stage tensioners are engineered with minimal maintenance demands, minimizing downtime and reducing overall operational costs.

User-Centric Design: Encounter intuitive controls and seamless operation for efficient and error-free bolting. These features alleviate user fatigue and ensure a smooth workflow, even during prolonged projects.

Unrivaled Strength & Reliability: When tackling rigorous assignments, reliability is paramount. HexForce multi-stage tensioners are engineered for exceptional strength and durability, enduring demanding applications and prolonged usage with unwavering confidence.

Invest in Efficiency and Assurance:

HexForce multi-stage tensioners transcend mere tools; they represent an investment in your bolting operations. Their adaptability, minimal maintenance requirements, user-centric design, and unparalleled durability empower you to overcome the toughest bolting challenges with efficiency and assurance.

Elevate your bolting endeavors today. Reach out to us to explore more about HexForce multi-stage tensioners!
