Hydraulic Square Drive XLCT
Hydraulic Square Drive XLCT
Hydraulic Square Drive EDGES

Hydraulic Torque Wrench

The hydraulic torque wrench is an essential industrial tool utilized for bolting tasks, renowned for its precision torque output accuracy within the range of +/- 3%, rendering it exceedingly dependable and adaptable.

It can be broadly categorized into two types:

  1. Square drive (requires an external socket)

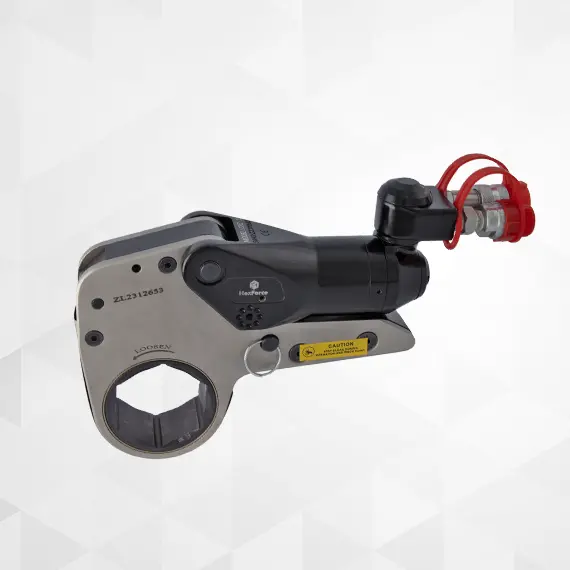

  2. Hex drive (direct fitting)

Additionally, there are several notable features, such as the side reaction arm, torque and angle dial, and auto release, which represent variations of the tool.

These wrenches are outfitted with various features, including the front side reaction arm, auto release, torque and angle dial, among others, which also represent different variations of the tool.

Hydraulic Torque Wrenches

In the realm of industrial bolting, hydraulic torque wrenches excel precisely where traditional manual wrenches falter, offering both the might and finesse necessary to conquer any bolting challenge. These tools leverage pressurized hydraulic fluid to unleash torque, enabling the precise handling of even the most resistant fasteners with unparalleled accuracy.


Industries

  • Construction

  • Infrastructure

  • Oil and Gas

  • Manufacturing

  • Aerospace

  • Wind

  • Thermal

  • Shipbuilding


Applications:

  • Pipeline Installation: Safeguard the structural solidity of construction machinery, wind turbines, and other colossal apparatuses through meticulously tightened critical elements.

  • Bridge Construction: Attain unwavering confidence in securing high-pressure flange connections, assured that your hydraulic torque wrench delivers the exact force required for a reliable, leak-free seal.

  • Shipbuilding: From the keel to the mast, ensure the steadfast stability and safety of vessels by fastening crucial components with the controlled power of hydraulic torque wrenches.

  • Oil and Gas Sector: Uphold and assemble equipment within refineries, pipelines, and other rigorous environments, secure in the knowledge that your hydraulic torque wrench delivers the precise and potent fastening necessary for optimal performance and safety.


Beyond Brawn: The Advantages of Hydraulic Torque Wrenches

  • Unrivaled Torque Output: Hydraulic torque wrenches embody the epitome of "muscle memory," capable of generating substantially more torque than manual counterparts, effortlessly tackling even the most stubborn or oversized fasteners.

  • Precision Control at Your Fingertips: Adjustable pressure settings bestow ultimate control over applied torque, crucial for averting over-tightening, which can jeopardize fasteners, equipment, and joint integrity.

  • Mitigated Operator Fatigue: Entrust the heavy lifting to hydraulics! Power-assisted operation eliminates the need for manual exertion, significantly reducing operator fatigue and enhancing overall efficiency.

  • Safety at the Forefront: Hydraulic torque wrenches significantly mitigate the risk of repetitive strain injuries and other safety hazards commonly associated with manual tightening.

  • Adaptability to Varied Needs: Interchangeable sockets offer unparalleled versatility, enabling a single hydraulic torque wrench to accommodate a broad spectrum of fastener sizes, optimizing toolbox efficiency.


The Anatomy of Power and Precision: Key Attributes of Hydraulic Torque Wrenches

  • Hydraulic Pump: The core component, supplying pressurized fluid necessary for fastener tightening or loosening.

  • Torque Gauge: A real-time indicator of applied torque, ensuring precise control throughout the tightening process.

  • Reaction Arm: Provides a stable base for applying torque without compromising operator safety or positioning.

  • Swivel Head: Offers unparalleled maneuverability, facilitating access and tightening of fasteners in even the most confined or awkward spaces.

  • Safety Relief Valve: A critical safeguard preventing overloading and safeguarding the tool from damage in cases of accidental over-pressurization.

  • Drive Options: Square drive, hexagonal drive, or flange drive configurations cater to a diverse array of fastener types, ensuring compatibility with specific needs.

  • Selecting the Appropriate Tool for the Task: Further Considerations

  • Torque Range: Hydraulic torque wrenches are available in various capacities. Matching the wrench's torque output to the application's requirements is paramount for optimal performance and safety.

  • Portability: Factor in the wrench's size and weight relative to your work environment. Portability significantly impacts ease of use, particularly for large-scale projects or elevated locations.

  • User-Friendliness: Seek out intuitive controls and clear instructions to ensure safe and efficient operation, minimizing training time and maximizing productivity.

  • Maintenance: Regular upkeep is essential to maintain optimal performance and safety. Adhering to manufacturer recommendations for maintenance prolongs the tool's lifespan and safeguards your investment.

  • Hydraulic torque wrenches represent a potent and adaptable solution for industrial bolting applications demanding controlled high torque.


People Also Ask

Hydraulic torque wrenches are power tools that use pressurized fluid (hydraulics) to deliver precise and high torque. This makes them ideal for tasks where traditional wrenches just can't muscle through. These wrenches are used to tighten or loosen stubborn fasteners to achieve the proper connection. They can be attached directly to the nut or used with an impact socket for added grip.

Hydraulic torque wrenches are built for heavy-duty tasks. They operate at extremely high pressures, typically exceeding 10,000 psi (pounds per square inch). This immense hydraulic pressure translates into impressive torque outputs, often surpassing 50,000 foot-pounds. This combination of high pressure and torque allows them to tackle jobs that would be impossible for traditional wrenches.

Hydraulic torque wrenches go beyond brute force. They offer several advantages over traditional impact wrenches and manual torque wrenches- Self-Ratcheting: Simplifies the tightening or loosening process, reducing operator effort. High Accuracy: Delivers precise torque application, ensuring proper fastener tension and preventing damage. Easier to Use: The hydraulic power assist reduces strain compared to manual wrenches. Quieter Operation: Enjoy a more comfortable work environment with significantly lower noise levels. Lighter Weight: The design allows for a more compact and lightweight tool compared to its high-torque capabilities. These combined benefits make hydraulic torque wrenches a versatile and user-friendly choice for demanding bolting applications.

The operating principle of a hydraulic torque wrench centers on the utilization of pressurized oil. This oil is directed into the wrench, where it exerts force upon a piston located within the internal chamber. The resultant movement of the piston then drives the rotation of a hexagonal ring. This ring, in turn, engages with the nut targeted for tightening. Once the predetermined pressure level, indicative of the desired tightness, is achieved, the piston retracts. This retraction resets the internal ratcheting mechanism within the wrench. The entire cycle of oil flow, piston movement, and ratchet action repeats itself until the targeted nut is securely fastened at the precisely calibrated torque value.
