Hydraulic Torque Wrench - CNZ Series

Catalogue

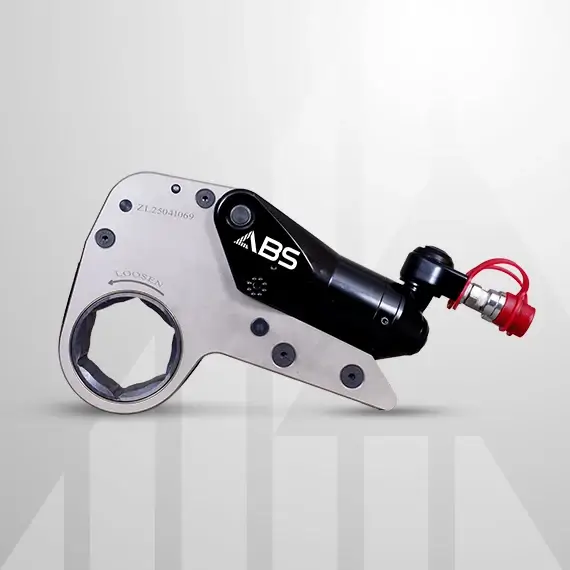

Hydraulic Torque Wrench - CNZ Series image

Hex Drive Hydraulic Torque Wrench

Introducing the HexForce CNZ series of hex drive torque wrenches, meticulously crafted for applications within confined spaces where conventional tools often face limitations in operation or accessibility.

The sleek and purpose-driven design of the CNZ series ensures a seamless fit, establishing it as the ultimate solution for torquing tasks in the most restricted environments.

Elevate your torquing arsenal with the HexForce CNZ hex drive torque wrench series. Engineered to excel in confined spaces, this series amalgamates precision, efficiency, and adaptability. HexForce CNZ stands as your reliable companion, guaranteeing unparalleled accuracy in challenging environments.

Key Features:

  • Secondary Pawl for Expedited Tightening
  • 360° x 360° Hose Uniswivel
  • Ratchet Release Mechanism
  • Versatile Range of Accessories
  • Torque Range: 243-41986 Nm



Enquire Now
MODEL H
(inch/
mm)		 W1
(inch/
mm)		 W2
(inch/
mm)		 L
(inch/
mm)		 R
(inch/
mm)		 HEX
(inch/mm)		 WEIGHT
(lbs/kg)
(Without Link)		 TORQUE
(ft.lbs./Nm)
                MIN. MAX.
CNZ-02 4.0”
102.1		 1.9”
49.3		 1.3”
31.8		 7.7”
194.6		 1.1” - 1.8”
26 - 44.7		 3/4" - 2 3/8"
19 - 60		 1.98
0.9

243
329

 1686
2286
CNZ-05 5.4”
136.4		 2.6”
65.8		 1.7”
42.4		 10.5”
266		 1.3” - 2.3”
34 - 58.9		 1 5/16" - 3 1/8"
34 - 80		 4.41
2		 580
786		 3853
5224
CNZ-10 6.7”
170.3		 3.2”
82		 2.1”
53.9		 12.6”
320.1		 1.8” - 2.9”
45 - 73.4		 1 5/8" - 4 1/8"
41 - 105		 7.50
3.4		 1142
1549		 8146
11045
CNZ-18 8.0”
204		 3.9”
98.4		 2.5”
63.6		 14.6”
371.3		 2.4” - 3.5”
59 - 88.1		 2" - 4 1/2”
50 - 120		 12.13
5.5		 2009
2724		 13392
18157
CNZ-25 9.1”
231		 4.4”
111		 2.8”
72		 14.3”
364		 2.6”-3.9”
67-98.3		 2" - 4 1/2”
75 - 120		 14.85
6.7		 2790
3780		 19100
25881
CNZ-42 10.7”
272.5		 5.2”
131.5		 3.3”
84.5		 16.8”
427.2		 3.1” - 4.8”
78 - 121.9		 3 1/2” - 6 1/2”
90 - 165		 24.03
10.9		 4577
6205		 30967
41986

CNZ Series Hydraulic Torque Wrenches: Mastering Precision and Speed in Confined Spaces



Introduction

The CNZ series low-profile hydraulic torque wrench is the ultimate solution for precision and efficiency in confined spaces. With its innovative design and user-friendly features, the CNZ series empowers you to tackle bolting challenges even in the narrowest environments, ensuring seamless performance and unparalleled results.



Applications

  • Confined Spaces: Engineered for restricted and hard-to-reach areas, delivering precise torque application where conventional tools struggle.

  • High Bolt Protrusion: Designed to address challenges posed by extensive bolt heads protruding from the work surface, ensuring reliable and accurate torque application.



Benefits

  • Enhanced Accessibility: The streamlined design ensures effortless maneuverability in tight spaces.
  • Increased Efficiency: The quick release lever minimizes downtime, allowing for faster socket changes and uninterrupted workflow.
  • Improved Accuracy: The secondary pawl mechanism prevents ratchet reversal, facilitating controlled tightening and precise torque delivery.
  • Versatility in Bolting: Tailored to address various challenges, making it an indispensable tool for diverse industrial applications.



Features

  • Streamlined Design: A sleek form factor for unparalleled accessibility and performance in confined spaces.
  • Quick Release Lever: Enables one-handed operation for seamless socket swapping and enhanced workflow efficiency.
  • Bolt Clearance Capability: Specialized design to handle extensive bolt heads, offering a precise torquing solution in challenging scenarios.
  • Secondary Pawl Mechanism: Ensures secure tightening and prevents ratchet reversal, providing accuracy and control throughout the process.



For technical issues and after-sales support, please contact us at marketing@aogsgulf.com or call +971-54-465-6191. Find us in South Asia: Explore our presence and the innovative Hydraulic Torque Wrench we offer.

FAQs

The CNZ Wrench offers a lock-on adapter that ensures unparalleled hand safety by attaching the tool to each bolt. This eliminates the need to manually hold the tool in place, allowing for completely hands-free bolting operations.

Yes, the CNZ Hydraulic Torque Wrench is capable of performing all standard bolting operations and excels in applications with reduced clearance, thanks to its advanced design and features.

The CNZ is designed to handle high torque values efficiently, making it a reliable workhorse for general maintenance applications. Its three-moving-part design, ensures repeatable and consistent results.

The CNZ's slim profile design, maintained throughout the powerhead and hex link, makes it the most economical solution. This design enhances its maneuverability and effectiveness in various torque applications.

The CNZ series is available with interchangeable cartridges for 6-point hex, 12-point hex, allen drives, square drives, open spanners, and many other configurations to simplify the most challenging bolting jobs.

Similar to the CNX, the CNZ features a lock-up release lever that allows users to release pressure after torquing, facilitating easy removal. This feature, also present in the CNZ limited-clearance accessories, adds convenience to the bolting process.

The purpose of a hex drive hydraulic torque wrench is to provide controlled and precise torque application, specifically in tasks involving hexagonal fasteners.

Similar to standard hydraulic torque wrenches, hex drive hydraulic torque wrenches are known for their high accuracy, typically within ±3% tolerance.

The pressure on a hex drive hydraulic torque wrench aligns with the standard hydraulic torque wrench range, operating within 700 to 10,000 psi.

The maximum torque for a hydraulic torque wrench varies based on the model and design but can reach impressive levels, exceeding thousands of foot-pounds.
